doors with lipped/overlay construction (straight cam) or flush construction (formed cam).
For overlay application, the combined thickness of front and frame cannot exceed the cylinder length.. OPERATION – choice of either 90° or 180° cam turn.
Key removable in both locked and unlocked positions.. KEYING – Will key together with all other disc tumbler locks using RO3 (CompX National MPN D8785) key blank.
MKKD Locks are keyed to Master Key E41A (CompX MPN D8799) using RO7 (CompX National MPN D8783) key blank .. PACKAGING – Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers.
FlexaCam spacers also supplied - please see the first image at lower left.. Straight cam measures 1 1/2" from center of mounting hole to end.
Offset cam measures 1 1/8" from center of mounting hole to end with 11/32" offset.

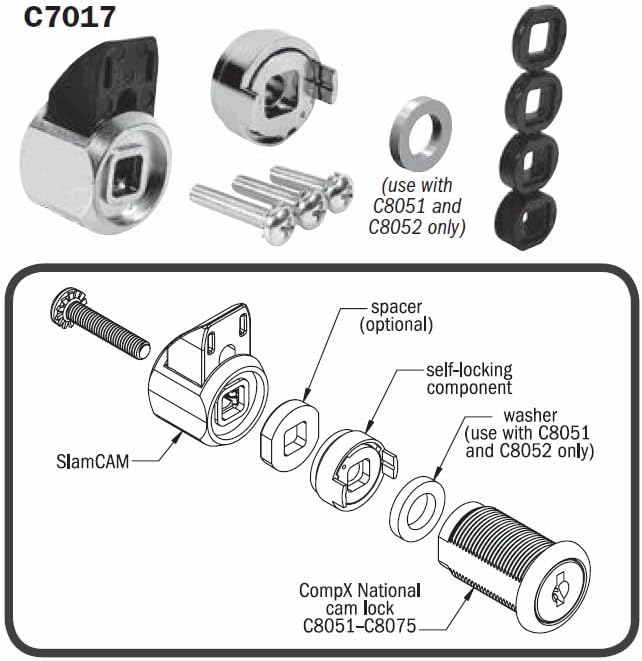

This lock can be modified to use the SlamCAM self-locking cam - see second thumbnail at left.
C8073 Instruction Sheet.
Overview
Brand : EasyKeys
Special Feature : Durable, Easy to Use
Lock Type : Disc Tumbler 1-3/16" Cam Lock - Keyed Alike to C413A
