About This

• SIMPLE TO USE: Pull all the tabs up to define the OFF state duration, push all the tabs down to define the ON state duration. Rotate dial clockwise to set time, aligning desired time with arrow. Set slide switch to TIMER to run programmed setting
• CONVENIENT SCHEDULING AND FEATURES: The timer features 48 on/off setting and is designed with captive tabs, allowing for as little as 30-minute time intervals. Removable dial allows installation in multi-gang boxes with decorator style wall plates
• COMPATIBILITY: The timer is compatible with incandescent, compact fluorescent and LED light bulbs
• RATINGS: 125-Volt, 20-Amp General Purpose, 2500-Watt Resistive, 1500-Watt Tungsten, 500VA Electronic Ballast (LED) and 1 HP Motor. AWG wiring and has an operating range of 32 to 104 degrees F (0 to 40 C)

Overview

• Color : White
• Brand : Tork
• Material : Plastic

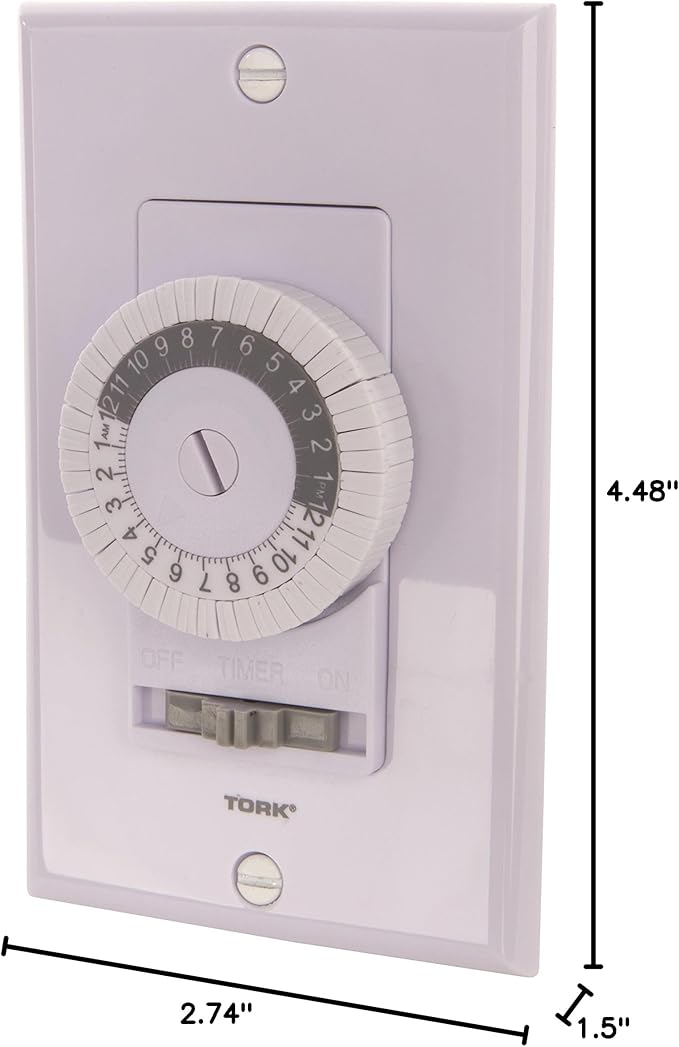

• Product Dimensions : 1.5"D x 2.74"W x 4.48"H
• Item Weight : 0.01 Pounds
